RD008 QR scanner IC card reader description:
RD008 hot access control system device, support QR and IC card reading, support Ethernet port and wiegand,
optional function is wifi. And it support TCP/HTTP, relay controller, suitable for gym, elevator or turnstile project.
Once you scan the barcode, then you can enter or pass the gate. Free SDK will be provided (RD006 and RD008 same SDK)
Application scenario: Gym, Elevator, Building office, turnstile access control.
RD008 Phone screen reader main features:
1. Embedded multi-tasking real-time operating system, the system can be fully started in 3 seconds.
2. Single door network access control + QR code scanning head + IC card reader triple product. Make the on-site
installation and maintenance simple and cost-effective.
3. The product comes with a voice amplifier and speaker. The voice for common entry and exit events can be set.
The network can control nearly 150 voices and can customize the voice.
4. Encrypted QR code that complies with the agreed rules can be opened / opened directly when not connected to
the Internet.The agreed rules mainly include: 1) the start time and end time of the two-dimensional code valid; 2) the number of
times the two-dimensional code is valid and exceeds the number of uses, the two-dimensional code can no longer be used; 3)
equipment MAC matching or project number building number Match, a QR code can contain one or more device numbers, which
can be legally valid on multiple devices; 4) The encryption key of the QR code can be modified without leaving any backdoors or
loopholes to ensure the security of the QR code.
5. Common parameters such as network IP parameters, lock delay, Wiegand 26/34, etc. can be set directly through the QR code,
making site commissioning easier
6. Equipment capacity: 35,000 cards, 50,000 records, 100,000 QR codes, and records and QR codes exceeding the capacity will be automatically covered.
Parameters:
| RD008 Round 2D IC Card Access Control Machine |
| QR Code Scanning Component Parameters |
| Image Sensor |
752X480 |
| Light Source |
White LED |
| Symbologies |
2D: PDF417, QR CODE, DATA MATRIX,Support Mobile Phone Mirror Recognition and Paper 2D Code Recognition |
| 1D: CODE 128, UCC/EAN-128, AIM-128, EAN-8 etc. |
| Reading Distance |
10-55mm |
| Scan Angle |
360° Full Angle |
| Display Components |
| Screen |
1.8 ”TFT true color screen |
| Resolution |
128 * 160 |
| Display Area |
28mmX35mm |
| Input and Output Parameters |
| Power Input |
9-18VDC |
| Working Current |
< 600mA |
| Can read like ISO14443Aor ISO14443B Card Serial Number |
Such as Second-generation ID card, FM1208 CPU Card, M1 Card (Mi fare S50, Mi fare S70 IC card), SRIX4K, etc. |
| Barcode or 2D Code Input |
Wiegand 26/34 output, output IC card number (common read head function) and associated card number output in compliance with QR code reservation rules |
| Communication Interface |
RJ45 10/100M TCP/IP, Extensible Wireless WIFI, Bluetooth |
| Communication Protocol |
Support TCP / UDP / HTTP |
| Voice output |
comes with voice, amplifier and speaker output, nearly 150 kinds of voice output, customizable voice |
| Device Input |
12V DC power input, 1 door magnetic input, 1 door button input, 1 alarm input |
| Equipment output |
1 channel 3A relay output, 1 channel unlock, 1 channel expansion can control door opener, light, water valve, etc. |
| Wiegand output |
Wiegand 26/34 output |
| Dimensions |
| Installation size |

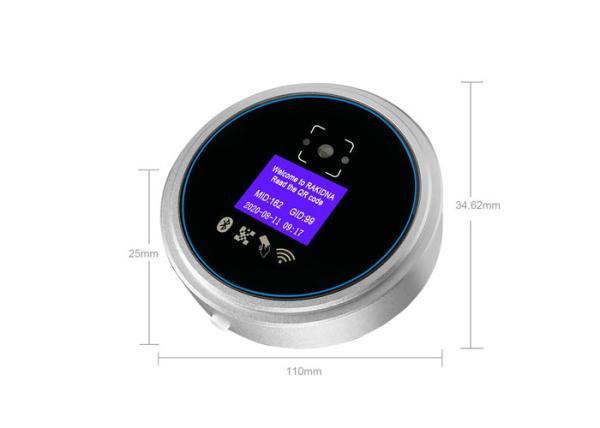

110mm * 25-34.62mm (L*H), Compatible with standard 86 box |
