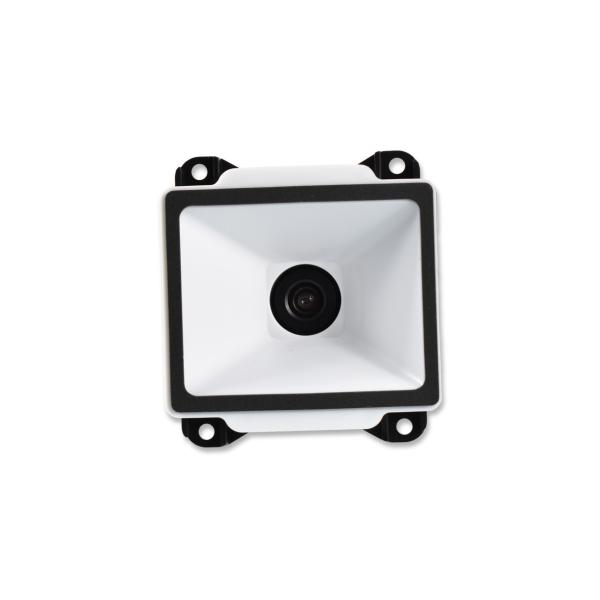

Custom QR Code Barcode Scan Engine Module White LED Light Source 5mil Resolution

Product Categories
Shenzhen Rakinda Technology Development Co., Ltd.
Contact Now

Custom QR Code Barcode Scan Engine Module White LED Light Source 5mil Resolution

  • 1
  • 2

Brand Name : Rakinda

Model Number : LV4200 OEM Scan Engine

Certification : CE FCC ROHS

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiation

Payment Terms : Western Union, T/T, paypal

Supply Ability : 1000 piece for a week

Delivery Time : 3-10 working days

Packaging Details : package in carton;

Name : OEM Scan Engine

Light Source : White LED

Operating Voltage : 3.0~5.5VDC

Symbologies : PDF417, QR Code (QR1/2, Micro), Data Matrix

Humidity : 5%~95% (non-condensing)

MOQ : 1 piece

Contact Now

Custom QR Code Scanner Module White LED Light Source 5mil Resolution​

1. Ambient Light
The LV4200 shows better performance with ambient light and it is well able to handle the flicker in fluorescent lights using 50-60Hz AC power. However, high-frequency pulsed light can result in performance degradation.
2. Eye Safety
The LV4200 has no lasers. It uses white LEDs to create illumination beam. The LEDs are bright, but testing has been done to demonstrate that the engine is safe for its intended application under normal usage conditions. However, the user should avoid looking into beam.

PerformanceImage Sensor 752×480 CMOS
Light Source White LED
Symbologies2DPDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000,
050, 080, 100, 140)
1DCode128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN,
UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5,
Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,
Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited,
RSS-Expand)
Resolution ≥5mil
Typical Depth of FieldEAN-1310mm-55mm (13mil)
PDF 41715mm-35mm (6.67mil)
Data Matrix 15mm-40mm (10mil)
QR Code10mm-50mm (15mil)
Symbol Contrast ≥30% reflectance difference
Scan Angle** Roll: 360°, Pitch: ±40°, Skew: ±40°
Field of View Horizontal 80°, Vertical 56°
Mechanical/Interface TTL-232
Electrical
Operating Voltage 3.0~5.5VDC
Current@5VDCOperating160mA
Sleep12mA
Dimensions 65.1(D)×61.1(W)×43.6(H)mm
Weight 41.5g
EnvironmentaL Operating Temperature -20℃~+60℃ (-4°F~140°F)
Storage Temperature -40℃~+80℃(-40°F~176°F)
Humidity 5%~95% (non-condensing)
Ambient Light 0~100000lux (natural light)
AccessoriesUSB Cable Used to connect the LV 4200 to a host device.


Custom QR Code Barcode Scan Engine Module White LED Light Source 5mil Resolution

As one of the leading suppliers in IoT (Internet of Things), RAKINDA, oriented by clients demand, is devoted to the development and innovation of intelligent firmware products and enjoys rich experience and resources in IoT and the big data area.
